ADDA散熱風扇AA1282HB-AW
地區城市：廣東省 －深圳市 更新時間：2013-7-15 22:31:12
聯 系 人： 李 有效期限：2014-7-9 9:49:06
公司名稱：深圳市旺景科技有限公司
電子信箱：sam@smartfan.com.cn 聯系電話：86-755-83286865

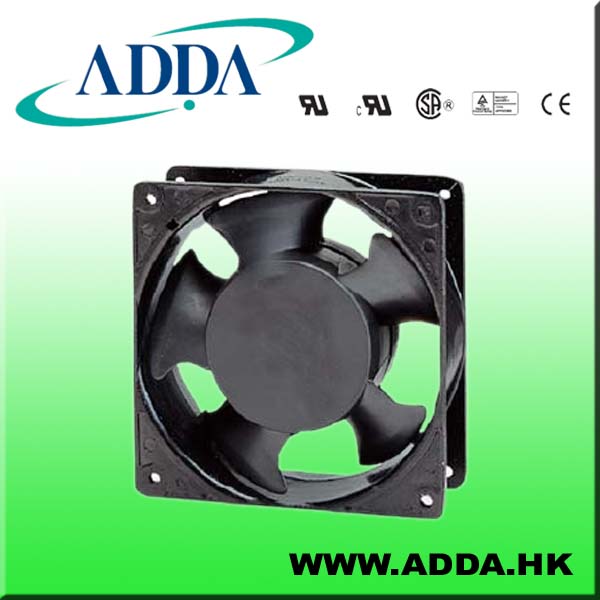

ADDA 120X120X38mm 115v/230v axial fan AA12038al
1. frame size(mm):120X120X38
2. bearing type:ball bearing
3. max air flow:105.1CFM
4. max noise: 46dB
ADDA 120X120X38mm 115v/230v axial fan AA12038al
|
Frame size(mm) |
120X120X38 | |
|
2 |
Bearing type |
ball bearing |
|
3 |
Rated voltage |
115V/50,60HZ, 230V/50,60HZ |
|
4 |
Rated speed |
1000~2700RPM |
|
5 |
Max air flow |
105.1CFM |
|
6 |
maxiam pressure: |
8.27mmAq |
|
7 |
Maxiam noise |
46.3dBA |
|
8 |
Functions |
|
|
9 |
safety approvals |
CE,TUV, UL,cUL |
|
10 |
Electric Strength |
5mA max at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Motor protection and polarity protection |
ADDA AA12038al axial fan
1. frame size(mm):120X120X38
2. bearing type:ball bearing
3. max air flow:105.1CFM
4. max noise: 46dB
ADDA AA12038al axial fan
|
1 |
Frame size(mm) |
120X120X38 |
|
2 |
Bearing type |
ball bearing |
|
3 |
Rated voltage |
115V/50,60HZ, 230V/50,60HZ |
|
4 |
Rated speed |
1000~2700RPM |
|
5 |
Max air flow |
105.1CFM |
|
6 |
maxiam pressure: |
8.27mmAq |
|
7 |
Maxiam noise |
46.3dBA |
|
8 |
Functions |
by impedance,FG |
|
9 |
safety approvals |
CE,TUV, UL,cUL |
|
10 |
Electric Strength |
5mA max at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Motor protection and polarity protection |
