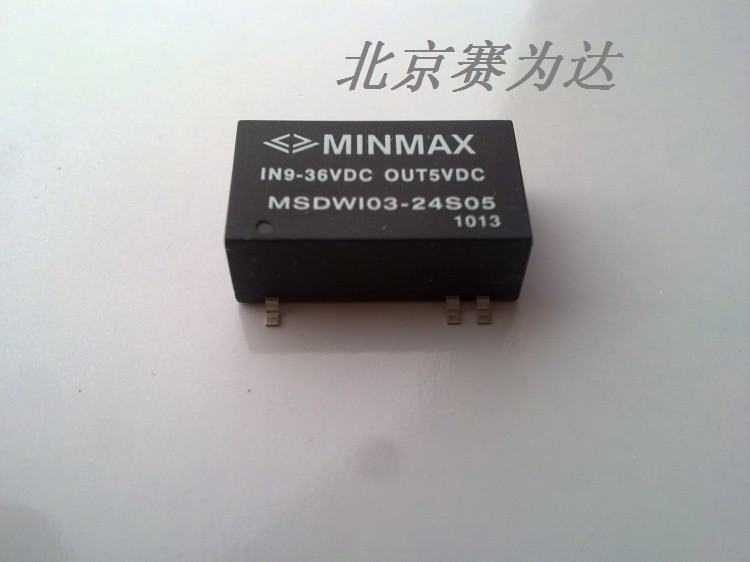

MSDWI03系列MINMAX電源模塊
地區城市：北京市－北京賽為達代理 更新時間：2011-8-11 17:04:27
聯 系 人：鄭 有效期限：2012-8-9 17:21:54
公司名稱：北京賽為達科技有限公司
電子信箱：mzsd007@hotmail.com 聯系電話：010-51735585，51735589，13811240319
產品特性：
|
Voltage Accuracy |
±1% typ |
|
Line Regulation |
±0.5% typ |
|
Load Regulation |
±0.5% typ |
|
Ripple & Noise (20MHz) |
60mVP-P typ |
|
Switching Frequency |
350kHz typ |
|
Efficiency |
Up to 80% |
|
Short Circuit |
Continuous |
|
Isolation Voltage |
1500VDC |
|
Isolation Resistance |
1000M? min |
|
Isolation Capacitance |
350pF typ |
|
Operating Temperature |
-40°C to +60°C |
|
Remote On/Off |
Enable High |
|
MTBF |
1,000,000 hours min |
|
Case Material |
Plastic, 94V-0 |
Model Selection Guide | |||
|
Model Number |
Input Voltage VDC |
Output Voltage VDC |
Output Current mA max |
|
MSDWI03-24S033 |
|
3.3 |
600 |
|
MSDWI03-24S05 |
|
5 |
600 |
|
MSDWI03-24S12 |
|
12 |
250 |
|
MSDWI03-24S15 |
24 |
15 |
200 |
|
MSDWI03-24S24 |
( 9 – 36 ) |
24 |
125 |
|
MSDWI03-24D05 |
|
±5 |
±300 |
|
MSDWI03-24D12 |
|
±12 |
±125 |
|
MSDWI03-24D15 |
|
±15 |
±100 |
|
MSDWI03-48S033 |
|
3.3 |
600 |
|
MSDWI03-48S05 |
|
5 |
600 |
|
MSDWI03-48S12 |
|
12 |
250 |
|
MSDWI03-48S15 |
48 |
15 |
200 |
|
MSDWI03-48S24 |
( 18 – 75 ) |
24 |
125 |
|
MSDWI03-48D05 |
|
±5 |
±300 |
|
MSDWI03-48D12 |
|
±12 |
±125 |
|
MSDWI03-48D15 |
|
±15 |
±100 |
