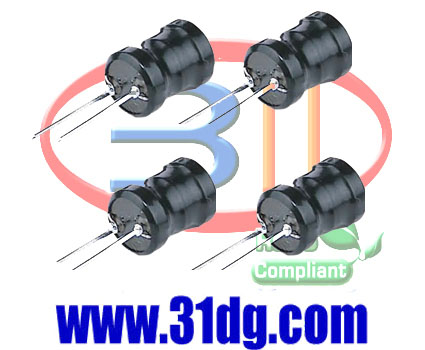

DIP 直插功率電感
所屬類別：電源配套分類>>電子元件
電子信箱：shuyunmei1992@126.com
聯系電話：13075694321
聯 系 人：舒小姐
更新時間：2010/5/27 14:17:26
Features (特征)
● Open Magnetic circuit construction
開磁路構造設計
● Low cost and high reliability
低成本及高可靠性
Applications (用途)
● Notebook, Inkjet printer, Copying machine, Display monitor, Cellular phone, ADSL modem, Gaming machine, Color TV, Video tape recorder, Video camera, Microwave oven, Lighting and Car electronics.
筆記本型電腦，噴墨打印機，影印機，顯示監視器，手機，寬頻數據機，游戲機，彩色電視，錄放影機，攝影機，微波爐，照明設備，汽車電子產品
Product Identification：產品識別
LGB 0608 – 101 K
1 2 3 4
1. Product Type 產品類型
2. CORE Size 磁芯尺寸
3. Inductance電感值 101 for 100uH
|
P/N 料號 |
A (MAX) |
B (MIN) |
C (MAX) |
D (MAX) |
E (MAX) |
|
0406 |
8.0 |
10.0 |
2.0±0.5 |
5.0 |
0.5±0.1 |
|
0608 |
10.0 |
10.0 |
3.0±0.5 |
7.0 |
0.6±0.1 |
|
0810 |
12.5 |
10.0 |
5.0±0.5 |
9.0 |
0.6±0.1 |
|
0912 |
15.0 |
10.0 |
5.0±0.5 |
11.0 |
0.6±0.1 |
|
1012 |
15.0 |
10.0 |
7.0±1.0 |
12.0 |
0.8±0.1 |
|
1016 |
19.0 |
10.0 |
7.0±1.0 |
12.0 |
0.8±0.1 |
|
1415 |
18.0 |
10.0 |
8.0±1.0 |
16.0 |
0.8±0.1 |
4. Tolerance 誤差值 (J 5%,K 10%,L 15%,M 20%,N 30%)
