熱賣G2116移動電源同步升壓IC 5V/0.8A高效率方案 GMT致新一級代理,可免費給生產廠家提供樣品!

G2116—同步整流升壓轉換器，適用于移動電源5V/1A方案，平均效率93%左右

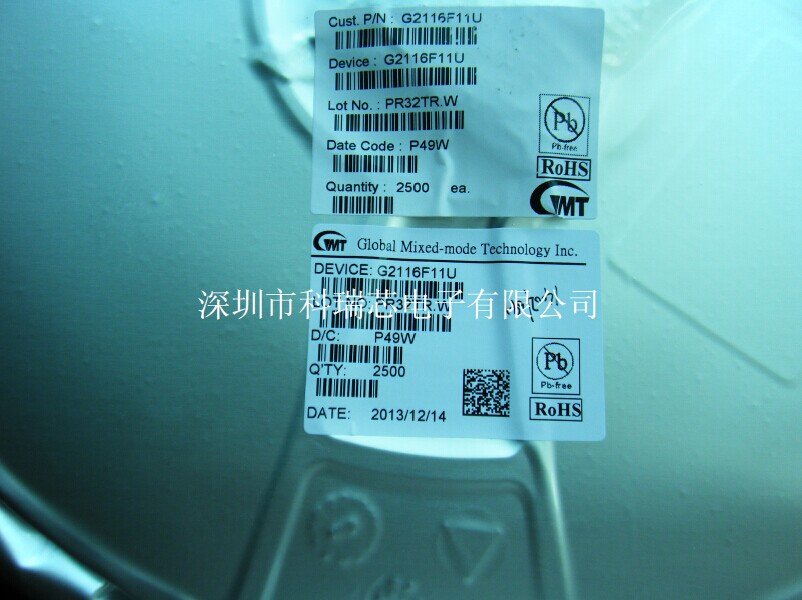

型號:G2116F11U

封裝:SOP-8

最小包裝:2500/盤

Features
􀂄 Up to 92% Efficiency at VOUT = 5V from 3.3V Input
􀂄 Low 80μA Quiescent Current
􀂄 Guaranteed 1.2A Output Current at VOUT = 5V
from 3.3V Input
􀂄 1MHz PWM Switching Frequency
􀂄 Synchronous and Embedded Power Mosfets;
No Schottky Diode Required
􀂄 Internal Soft-Start to Limit Inrush Current
􀂄 Adjustable Output
􀂄 Adjustable Output Current Limit in SOP-8 (FD)
􀂄 Output turn off true shutdown function
􀂄 Current Mode Operation with Internal Compensation
for Excellent Line and Load Transient
Response
􀂄 Overload/Short-Circuit Protection with hiccup
control
􀂄 Shutdown Current <1μA
􀂄 Thermal Shutdown
􀂄 Compact 8 pin,SOP-8 (FD)

Application
􀂄 iPad-like computers, smart phones and portable
handheld devices.
