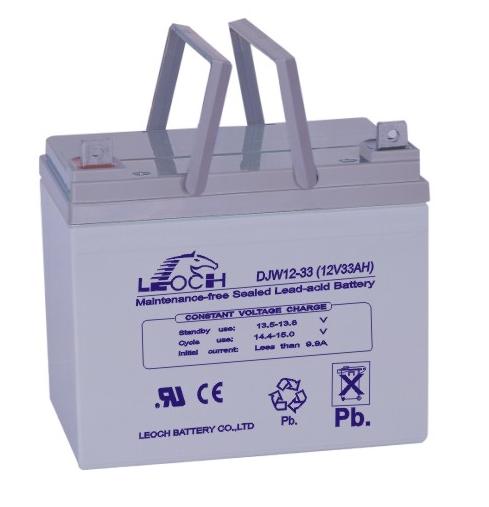

理士電池(理士蓄電池) DJW12-33
12V 33Ah
DJW12-33 is a general purpose battery up to 12 years in standby service.

理士電池 DJW12-33
規格書
電壓值  12V
容量  33Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
尺寸  Length 195±2mm (7.68 inches)
Width 130±2mm (5.12 inches)
Container Height 164±2mm (6.46 inches)
Total Height (with Terminal) 180±2mm (7.09 inches)
重量(kg)   Approx. 10.5kg. (23.15 lbs.)
最大放電電流5秒(A)   495A (5sec.)
內阻(mΩ)   Approx. 12mΩ
溫度工作范圍   Discharge：-15℃~50℃(5°F~122°F)
Charge：0℃~40℃(32°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用溫度工作范圍   25°C ±3°C (77°F ± 5°F)
浮充使用 No limit on Initial Charging Current Voltage
13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C
循環使用  Initial Charging Current less than 9.9A.Voltage
14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C
自放電   LEOCH DJW series Batteries can be stored for more than 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
端子   T5/T2/T6/T12
電槽組材質 ABS
